N4-A18 Ogee Fillet Bit Type A 2 Flute 5/32" Radius 1/4" Shank A18 Blade

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: N4-A18
Price: $133.27CAD $119.94CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

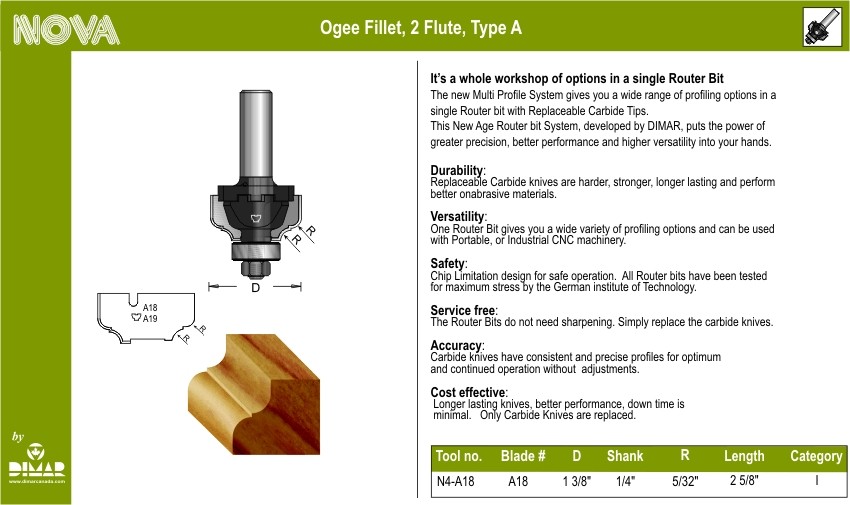

1 3/8" Dia, Carbide Inserts, Ogee Fillet, Type A, 2 Flutes, 1/4" Shank, 2 5/8" Length

Dimar's carbide inserts Ogee Fillet bits consists of two arcs that curve in opposite senses so that the ends are parallel. In architecture, the name is also used for a moulding with an ogee-shaped profile, consisting (going from low to high) of a concave arc flowing into a convex arc, with vertical ends. Some slight variations of the standard ogee are also known as “wavy bits”. A “stepped ogee” is basically an ogee bit with a step-like design at the intersection of the two curves, to give it a detailed design.

  • Two flutes are ideal when fine finishing is a priority.
  • Works on most CNC, Hand-Held, and table routers.
  • Cuts most softwood and hardwood.

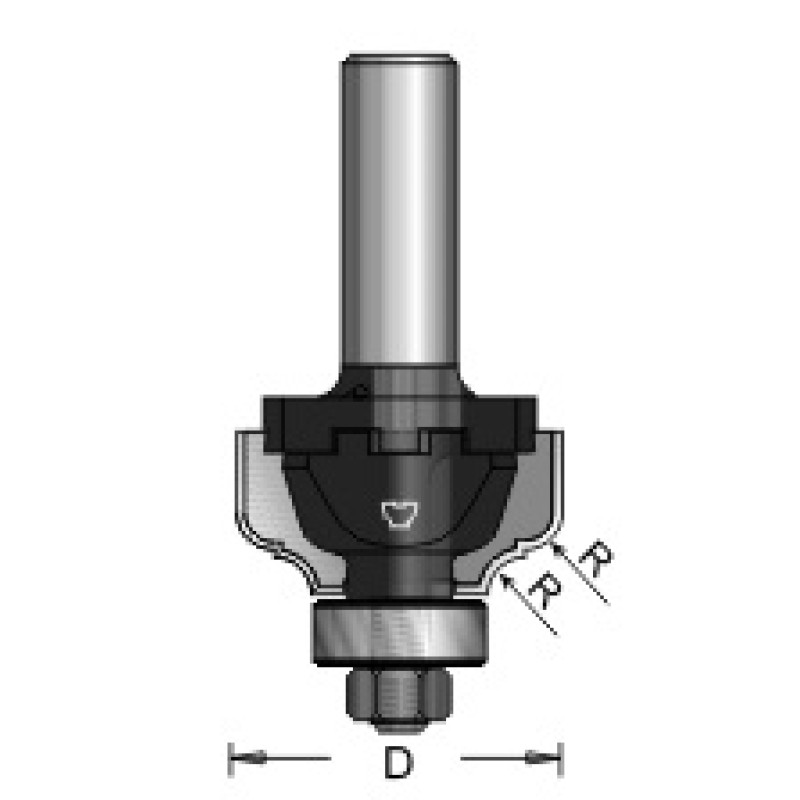

Diameter (D) 1 3/8"
Number of Cutters 2
Shank (d) 1/4"
Radius (R) 5/32"
Overall Length (L) 2 5/8"
Technology Carbide Inserts
Tools Hand Router, CNC Machine
Material Soft Wood, Hard Wood
