Panel & Scoring Saw Reference Chart

Posted on 22.06.2020 | Updated on 10.07.2020 |
Panel & Scoring Saw Reference Chart

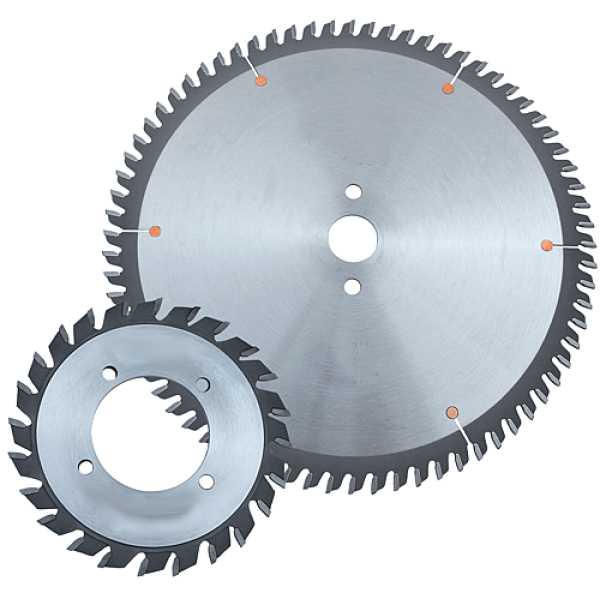

Panel Saw Main and Scoring Blades by Machine Make & Model

For optimal performance on your sliding table or verticle panel saw, it is important to have the correct, matching set of main and scoring blades. You can refer to this list to find your specific machine, and then the part number is a direct link to the matching blade. Just click on the part number to start your order!

Panel Saw Diameter Kerf Bore Teeth Machine Scoring Saw Diameter Kerf Bore Teeth
05400724460U 400mm 4.4mm 60mm 72 Anthon LN 07180304420U 180mm 4.4mm-5.4mm 20mm 30
05430724460U 430mm 4.4mm 60mm 72 Anthon CP 07180304420U 180mm 4.4mm-5.4mm 20mm 30
05250603230U 250mm 3.2mm 30mm 60 Casadei Linea 07125243220U 125mm 3.2mm-4.2mm 20mm 24
05350724480U 350mm 4.4mm 80mm 72 Gabbiani Galaxy 85 07160364455U 160mm 4.4mm-5.4mm 55mm 36
05400604480U 400mm 4.4mm 80mm 60 Gabbiani Galaxy 115 07160364455U 160mm 4.4mm-5.4mm 55mm 36
05400724480U 400mm 4.4mm 80mm 72 Gabbiani Galaxy 115 07160364455U 160mm 4.4mm-5.4mm 55mm 36
05450724480U 450mm 4.4mm 80mm 72 Gabbiani Galaxy 140 07200364465U 200mm 4.4mm-5.4mm 65mm 36
05500724880U 500mm 4.8mm 80mm 72 Gabbiani A/10 07200364865U 200mm 4.8mm-5.8mm 65mm 36
05520724880U 520mm 4.8mm 80mm 72 Gabbiani 07160364855U 160mm 4.8mm-5.8mm 55mm 36
05530724880U 530mm 4.8mm 80mm 72 Gabbiani 07160364855U 160mm 4.8mm-5.8mm 55mm 36
05320724475U 320mm 4.4mm 75mm 72 Giben Smart 07200444450U 200mm 4.4mm-5.4mm 50mm 44
05355544475U 355mm 4.4mm 75mm 54 Giben Trend 07125244445U 125mm 4.4mm-5.4mm 45mm 24
05355604475U 355mm 4.4mm 75mm 60 Giben 07125244445U 125mm 4.4mm-5.4mm 45mm 24
05355724475U 355mm 4.4mm 75mm 72 Giben Trend 07125244445U 125mm 4.4mm-5.4mm 45mm 24
05365724475U 365mm 4.4mm 75mm 72 Giben 07125244445U 125mm 4.4mm-5.4mm 45mm 24
05380724450U 380mm 4.4mm 50mm 72 Giben Onix 105 07180444450U 180mm 4.4mm-5.4mm 50mm 44
05400604475U 400mm 4.4mm 75mm 60 Giben 07125244445U 125mm 4.4mm-5.4mm 45mm 24
05400724475U 400mm 4.4mm 75mm 72 Giben 07125244445U 125mm 4.4mm-5.4mm 45mm 24
05400844475U 400mm 4.4mm 75mm 84 Giben Prismatic-1 07160364455U 160mm 4.4mm-5.4mm 45mm 36
05430724475U 430mm 4.4mm 75mm 72 Giben Prismatic-115 07215424450U 215mm 4.4mm-5.4mm 50mm 42
05430964475U 430mm 4.4mm 75mm 96 Giben Prismatic-115 07215424450U 215mm 4.4mm-5.4mm 50mm 42
05470964475U 470mm 4.4mm 75mm 96 Giben Prismatic-3 07215424450U 215mm 4.4mm-5.4mm 50mm 42
05500604475U 500mm 4.4mm 75mm 60 Giben 07125244445U 125mm 4.4mm-5.4mm 45mm 24
05500724475U 500mm 4.4mm 75mm 72 Giben 07125244445U 125mm 4.4mm-5.4mm 45mm 24
05500724875U 500mm 4.8mm 75mm 72 Giben 07125244845U 125mm 4.8mm-5.8mm 45mm 24
05550725010U 550mm 5mm 100mm 72 Giben Model 17/19 07180365055U 180mm 5.0mm-6.0mm 55mm 36
05565605010U 565mm 5mm 100mm 60 Giben Model 17/19 07180365055U 180mm 5.0mm-6.0mm 55mm 36
05565725010U 565mm 5mm 100mm 72 Giben Model 17/19 07180365055U 180mm 5.0mm-6.0mm 55mm 36
05380724860U 380mm 4.8mm 60mm 72 Holzma Type 81 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05380724860U 380mm 4.8mm 60mm 72 Holzma Type 82 07180364845U 180mm 4.8mm-5.8mm 45mm 36
05420724460U 420mm 4.4mm 80mm 72 Holzma Type 92 07200364445U 200mm 4.4mm-5.4mm 45mm 36
05420724860U 420mm 4.8mm 60mm 72 Holzma Type 92 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05450604860U 450mm 4.8mm 60mm 60 Holzma Type 11 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05450724460U 450mm 4.4mm 60mm 72 Holzma Type 11 07200304445U 200mm 4.4mm-5.4mm 45mm 30
05450724860U 450mm 4.8mm 60mm 72 Holzma Type 11 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05500604860U 500mm 4.8mm 60mm 60 Holzma Type 21 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05500724860U 500mm 4.8mm 60mm 72 Holzma Type 22 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05500964860U 500mm 4.8mm 60mm 96 Holzma Type 21 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05520604860U 520mm 4.8mm 60mm 60 Holzma Type 23 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05520724860U 520mm 4.8mm 60mm 72 Holzma Type 23 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05540844860U 540mm 4.8mm 60mm 84 Holzma Type 33 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05570604860U 570mm 4.8mm 60mm 60 Holzma Type 42 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05570605860U 570mm 5.8mm 60mm 60 Holzma Type 42 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05600605860U 600mm 5.8mm 60mm 60 Holzma Type 33 & 42 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05600725860U 600mm 5.8mm 60mm 72 Holzma Type 33 & 42 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05670605860U 670mm 5.8mm 60mm 60 Holzma Type 61 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05670725860U 670mm 5.8mm 60mm 72 Holzma Type 61 07200364845U 200mm 4.8mm-5.8mm 45mm 36
05240543230U 240mm 3.2mm 30mm 54 Scheer FM10 07180423216U 180mm 3.2mm-4.2mm 16mm 42
05350724430U 350mm 4.4mm 30mm 72 Schelling FXH 07300484420U 300mm 4.4mm-5.4mm 20mm 48
05370724430U 370mm 4.4mm 30mm 72 Schelling FM 07200364420U 200mm 4.4mm-5.4mm 20mm 36
05400604430U 400mm 4.4mm 30mm 60 Schelling AW & FW 07150244420U 150mm 4.4mm-5.4mm 20mm 24
05400724430U 400mm 4.4mm 30mm 72 Schelling AW & FW 07150244420U 150mm 4.4mm-5.4mm 20mm 24
05450724430U 450mm 4.4mm 30mm 72 Schelling AL & FL 07200364420U 200mm 4.4mm-5.4mm 20mm 36
05480724430U 480mm 4.4mm 30mm 72 Schelling AL & FL 07200364420U 200mm 4.4mm-5.4mm 20mm 36
05500604430U 500mm 4.4mm 30mm 60 Schelling FW 07180364420U 180mm 4.4mm-5.4mm 20mm 36
05530605030U 530mm 5mm 30mm 60 Schelling AL 07200365020U 200mm 5.0mm-6.0mm 20mm 36
05550605040U 550mm 5mm 40mm 60 Schelling FT/AT 07200365020U 200mm 5.0mm-6.0mm 20mm 36
05580605540U 580mm 5.5mm 40mm 60 Schelling AT 07200365520U 200mm 5.5mm-6.5mm 20mm 36
05630606240U 630mm 6.2mm 40mm 60 Schelling 07200366220U 200mm 6.2mm-7.2mm 20mm 36
05650726240U 650mm 6.2mm 40mm 72 Schelling FS & AS 07200366220U 200mm 6.2mm-7.2mm 20mm 36
05670726040U 670mm 6mm 40mm 72 Schelling FS 07200366020U 200mm 6.0mm-7.0mm 20mm 36
05680606240U 680mm 6.2mm 40mm 60 Schelling FS 0720036220U 200mm 6.2mm-7.2mm 20mm 36
05350724481U 350mm 4.4mm 80mm 72 SCM Prima 90 07160364455U 160mm 4.4mm-5.4mm 55mm 36
05355724430U 355mm 4.4mm 30mm 72 SCM 07160364455U 160mm 4.4mm-5.4mm 55mm 36
05400724482U 400mm 4.4mm 80mm 72 SCM Sigma 115 07160364455U 160mm 4.4mm-5.4mm 55mm 36
05355724411U 355mm 4.4mm 1-1/4” 72 SCMI 07150244411U 150mm 4.4mm-5.4mm 1-1/4” 24
05320604465U 320mm 4.4mm 65mm 60 Selco EB80 07200364465U 200mm 4.4mm-5.4mm 65mm 36
05355724480U 355mm 4.4mm 80mm 72 Selco EB90 07200364465U 200mm 4.4mm-5.4mm 65mm 36
05360724465U 360mm 4.4mm 65mm 72 Selco EB100 07200364465U 200mm 4.4mm-5.4mm 65mm 36
05400724481U 400mm 4.4mm 80mm 72 Selco EB100 07200364465U 200mm 4.4mm-5.4mm 65mm 36
05430724481U 430mm 4.4mm 80mm 72 Selco EB120 07200364465U 200mm 4.4mm-5.4mm 65mm 36
05450724481U 450mm 4.4mm 80mm 72 Selco WN 600/132 07200364465U 200mm 4.4mm-5.4mm 65mm 36
05450724881U 450mm 4.8mm 80mm 72 Selco WN 600/132 07200364865U 200mm 4.8mm-5.8mm 65mm 36
05480724880U 480mm 4.8mm 80mm 72 Selco WN 600/145 07200364865U 200mm 4.8mm-5.8mm 65mm 36
